25400 Compact Vacuum Glove Box

SKU GBOX-1A Category

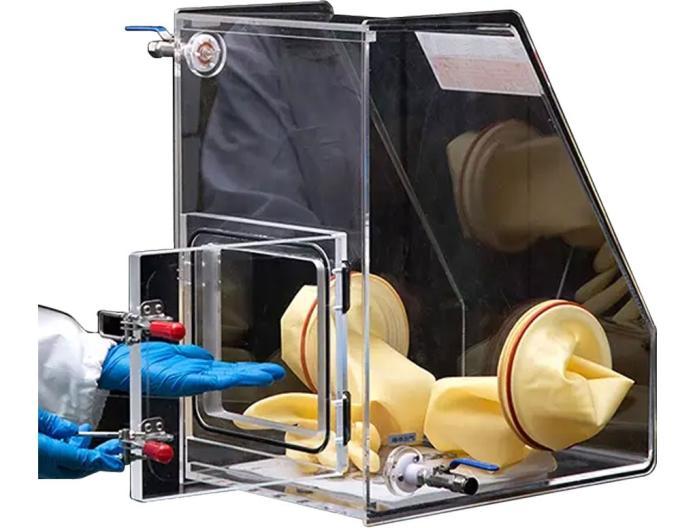

GBOX-1A- This is a 300L x 400W x 500H mm acrylic glove box that features a vacuum air locker and a side door. It’s made of transparent polycarbonate, which offers clear visibility from all angles. The glove box is resistant to a wide range of materials and chemicals. The cell dimensions are 300L x 400W x 500H mm, and the side door is square-shaped and measures 180 x 180 mm (custom sizes are also available). The main chamber has a thickness of 6mm and is equipped with two ball valves with a diameter of 8mm. The glove port measures 150mm in diameter and uses standard rubber gloves that are 600mm long.
Add to Quotation

Description

25400 Compact Vacuum Glove Box

Excellent transparent view with acrylic material
The stand to put glove port cover during operation is equipped.
Glove port I.D: 140mm
Vacuum gauge range: 0~-0.1MPa
Air-supply valve on main body: needle valve, nozzle diameter 9mm
Air-exhaust valve on main body: ball valve, nozzle diameter 9mm
Air-exhaust valve on glove port: ball valve, nozzle diameter 9mm
Gasket material: silicon
Glove material: natural rubber
piping tube: nylon, O.D 8mm× I.D 6mm
Main body: 526W×463D×500Hmm
Internal dimension: 240W×158D(upper)/340D(lower)×360Hmm
Volume:25L
Weight: 20 Kg
