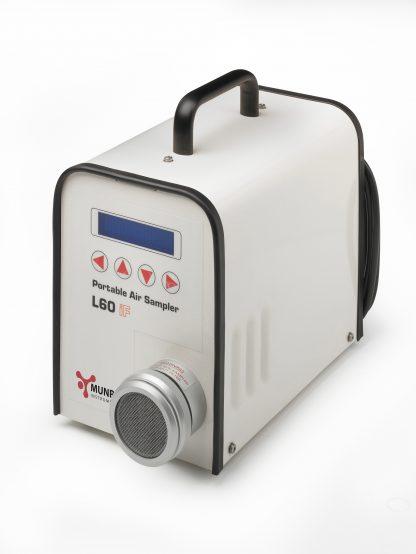

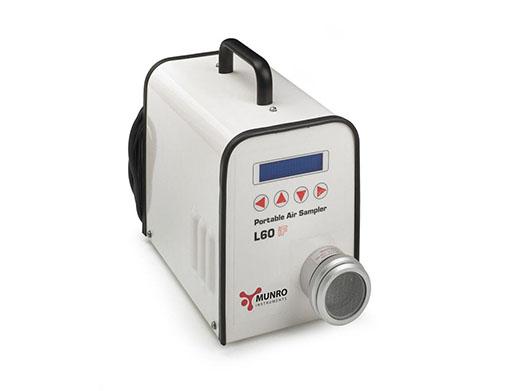

Large Volume Air Sampler with Microprocessor Control

SKU L60iF Categories ,

The L60iF is a Large Volume Air Sampler with an integrated flow monitoring system. Developed from the basic L60 Air Sampler, the L60iF incorporates microprocessor control and flow monitoring to provide additional functionality.

Add to Quotation

Description

The L60iF is a Large Volume Air Sampler with an integrated flow monitoring system. Developed from the basic L60 Air Sampler, the L60iF incorporates microprocessor control and flow monitoring to provide additional functionality.

The L60iF is suitable for all applications — from brief samples (100 litres in 100 seconds) to long term monitoring (3000 m³ in 30 days). A supervisor can programme a sampling schedule that can be initiated on site at the push of a button.

The sample volume and run times are stored in memory for verification. Should a flow interruption occur, the unit will display and sound an alarm, record the event and stop sampling. When power is restored after an interruption the sample will resume the program if the event meets criteria specified by the supervisor.

The L60iF represents an unbeatable combination of price, quality and reliability. They will run continuously for more than a year with only filter changes required. Applications include perimeter monitoring, emergency response, stack emissions sampling, routine workplace measurements and re-assurance monitoring. Many hundreds of these samplers are used in and around nuclear facilities throughout the world. They are also well-suited to monitoring airborne asbestos.

For information about how to configure your L60iF, view our instruction video below:

Additional information

Voltage

240V 50Hz, 110V 50Hz

Certificate of Conformity

Yes, No

Product Specifications

Nominal Flow Rate >60 L/min
Memory Volume to 9999 m³, Time to 9999 hours, Last 250 Sampling Programmes
Display Vacuum Fluorescent
Flow Loss Alarm Audible & Visual
Accuracy Flow ±2.5%, Volume ±3%
Sliding Vane Pump 4 Vanes
Power Supply 110V 50Hz or 240V 50Hz
Motor Protection Overload cutout trip
Dimensions 175 mm (H) X 290 mm (W) X 310 mm (D)
Weight 13.9 KG
Enclosure Steel, Powder Coated

SPECIFICATIONS

AIR-SAMPLER_SPEC

OPERATION MANUAL

MU-L60iF_OPR
