Description

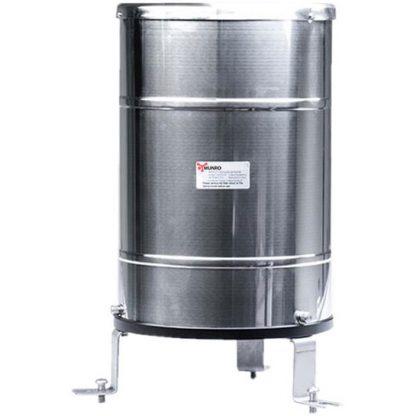

The SX2600 Tipping Bucket Rainfall Sensor is an instrument for testing rainfall in the
nature. In order to meet the requirement of information transmission, processing,
recording and display, the amount of rainfall is converted to pulse output. It can
be widely used in weather stations, hydrometric stations, agriculture & forestry,
defense & field monitoring stations. It can provide the original data for floodprevention,
water-supply system, and reservoir water management in plant.
Product Specifications
Rainfall collector: Diameter: φ200mm, height: 350mm
Measured rainfall intensity: Max: 4mm/min
Allow rainfall intensity: Max: 10mm/min
Resolution: 0.1mm, 0.2mm
Accuracy (2mm/min): ±4%
Maximum load voltage: 30VDC (pulse output)
Maximum load current: 20mA (pulse output)
Output: Reed switch pulses, RS485 (12-24VDC supply)
Operating temperature (no freeze): -20 – +80°C
Main material: Collector: 304SS, tipping bucket: ABS
Tipping bucket: Single
Heating (optional): Heating power: approx.350W Heating voltage: 220VAC
Collector filter: Removable filter (prevent leaves and sundries) optional
Weight (unpacked): 3.5kg
