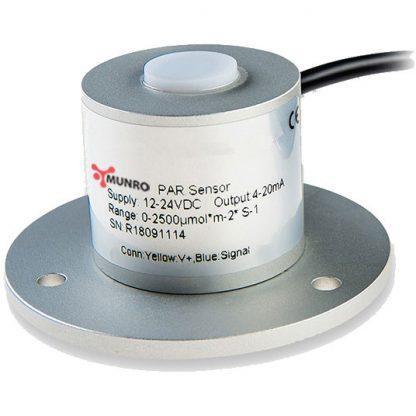

Quantum PAR Sensor, Photosynthetic Active Radiation Sensor

Quantum PAR Sensor, Photosynthetic Active Radiation Sensor

SKU SX2594 Category Solar Lighting & Pyranometers & Sun Tracker Tag Radiation

The SX2594 PAR Sensor is mainly used for measuring solar radiation within
400~700nm wavelength. It is easy installation and can work continuously in all
weathers. When there is sunlight, voltage output proportional to incident light
intensity will be generated by the silicon-photo detector in the sensor.
Its sensitivity is proportional to the cosine of incident light direct angle. Each
product is with one sensitivity coefficient respectively. It can directly output
radiation value in unit of μ*mol/m2*s.

Add to Quotation

Description

The SX2594 PAR Sensor is mainly used for measuring solar radiation within
400~700nm wavelength. It is easy installation and can work continuously in all
weathers. When there is sunlight, voltage output proportional to incident light
intensity will be generated by the silicon-photo detector in the sensor.
Its sensitivity is proportional to the cosine of incident light direct angle. Each
product is with one sensitivity coefficient respectively. It can directly output
radiation value in unit of μ*mol/m2*s.

Product Specifications

Spectral range: 0-2500μ*mol/m2*s / 350-1100nm
0-2000W/m2 / 400-700nm
Supply: 5V,12-24VDC
Accuracy: ±5% rdg
Range: 0-2500μ*mol/m2,0-2000W/m2
Output: 0-2000mV / 4-20mA (2-wires) / RS485
Sensitivity: 0-2500μ*mol/m2*s / 0.8mV/μmol*m-2* S-1 / 6.4μA/μ*mol*m2*s
0-2000W/m2 / 1mV/W/m2 / 8uA/W/m2
Response time: <1s (99%)
Temperature effect: <0.05%/°C
Cosine correction: <10% (until 80°)
Non-linearity: <±2%
Operating temperature: -40°C – +80°C°
Shell material: Aluminum alloy
Storage Condition: 10°C-60°C@20%-90%RH

Documentation

SX2594 Specifications
