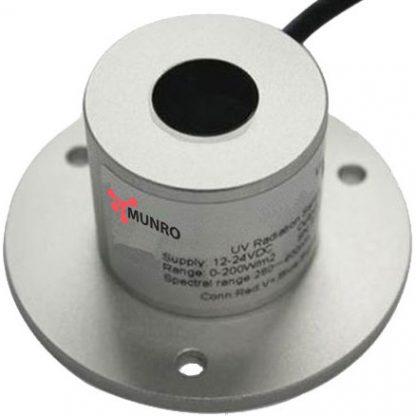

Radiation Sensor

The SX2597 UV Radiation Sensor is a precision instrument used to measure the
atmosphere of the sun’s ultraviolet radiation (UVA & UVB),supporting the product
related information acquisition instrument use can provide public concern: the
UV index, UV erythema measurement, on the health effects of the UV and UV
special biology and chemistry, highly meteorology, industry, construction,
medical attention, are widely used in the exposure caused erythema dose,
integrated environment ecological effect, the study of climate change and
ultraviolet radiation monitoring and forecast.

Add to Quotation

Description

Radiation Sensor

The SX2597 UV Radiation Sensor is a precision instrument used to measure the
atmosphere of the sun’s ultraviolet radiation (UVA & UVB),supporting the product
related information acquisition instrument use can provide public concern: the
UV index, UV erythema measurement, on the health effects of the UV and UV
special biology and chemistry, highly meteorology, industry, construction,
medical attention, are widely used in the exposure caused erythema dose,
integrated environment ecological effect, the study of climate change and
ultraviolet radiation monitoring and forecast.

Radiation Sensor

Product Specifications

Spectral range: 280 ~ 400nm
Supply: 5V,12-24VDC
Range: 0-200W/m2, 0-200uW/cm2 (only for 0-2V output), 0-15UV index
Output: 0-2V, 4-20mA (2 wires), 0-5V, RS485
Accuracy: ±5% rdg
Response time: ≤1s
Cosine correction: ≤±4% (Solar elevation angle=30°)
Non-linear: ≤±3%
Temperature effect: ±0.08%/°C
Stability: ≤±2%/year
Operating temperature: -40°C – +85°C
Ingress Protection: IP65
Weight (unpacked): 150g
Shell material: Aluminum alloy
Storage Condition: 10°C – 60°C@20%-90%RH

Documentation

SX2597 Specifications
