Description
Solar Radiation Sensor

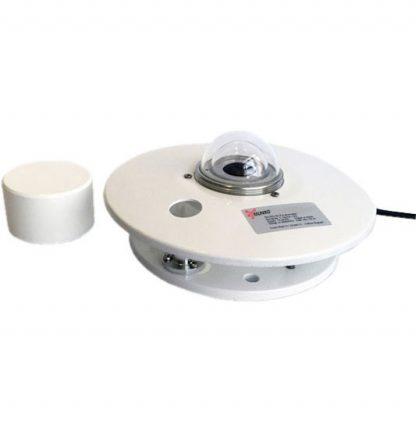

The SX2595 Pyranometer is produced based thermopile principle; sensing
elements are made by winding – plated thermopiles with multi contacts.
Its surface is coated by black coating with high absorption rate. Hot contacts on
the sensors surface, while the cold junction is located within the body,
temperature difference between the hot and cold junction generates
electromotive force, the thermoelectric effect is proportional to the solar
radiation. In order to reduce the ambient temperature effect, temperature
compensation circuit designed here to reduce the effects to products
properties.
Product Specifications
Spectral range: 300 ~ 3200nm
Supply: 5V,12-24VDC
Range: 0-2000W/m2
Output: 0-20mV,0-5V,4-20mA,RS485
Sensitivity: 7-14μV*W-1*m2
Internal resistance: 350Ω
Non-linearity: <±2%
Measuring angle: 2TT solid angle
Response time: ≤20s (99%)
Zero drift (temperature drift: 5k/h): ±5W/m2
Stability: ±2%/year
Cosine correction: ≤±7%(Solar elevation angle=10°)
Temperature effect: ±2%(-10°C – +40°C)
Operating temperature: -40°C – +80°C
Recalibration interval: 2 years
Desiccant: Silica gel desiccant
Weight (unpacked): 2.5kg
Pack: Aluminum alloy instrument box
Dimension: Ø185x120mm
Installation bracket (optional): Horizontal bracket or adjustable angle bracket
Ingress Protection: IP65
Storage Condition: 10°C – 60°C@20%-90%RH
