Description

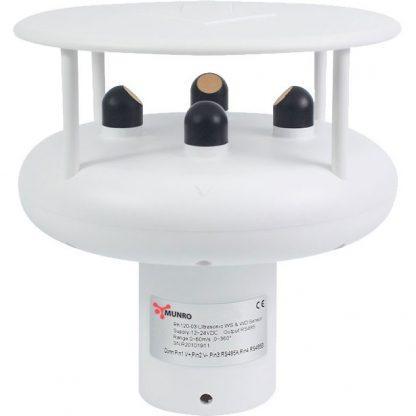

Ultrasonic Wind Speed & Direction Sensor

SX2591 Economical Ultrasonic Wind Sensor is a fully digital detector, highprecision
sensors, integrated by the ultrasonic wind speed and direction sensors.
it can accurately and quickly detect the wind speed, wind direction; built-in
signal processing unit can output a corresponding signal in response to user
needs, with the structure lightweight and compact, no moving parts,
high-strength structural design can be accurately detected in the harsh climatic
conditions,made the accurate and stable elements, low maintenance, an open
communications protocol and so on.It can be widely used in meteorology,
oceanography, environment, airports, ports, laboratories, industry and agriculture,
and transportation and other fields.

Features:
► Adapt to complex weather conditions
► No moving parts, long service life
► The surface preservative treatment
► Strong anti-interference
► High accuracy
► Automatic heating anti-frozen.



Ultrasonic Wind Speed & Direction Sensor

Product Specifications

Power Supply: 12-24VDC
Power consumption: <1W (Heating not activated); <3W (Heating activated)
Output Signal: RS232/RS485(Modbus/NMEA-0183),4-20mA(only for wind speed & direction) optional
Operating Temperature: -30°C – +70°C
Ingress Protection: IP66
Heating power: 3W max.
Electronic compass: optional
Atmospheric pressure: optional
Dimension: Ø144X148mm
Weight (unpacked): 0.8kg
Main material: ASA

Documentation

SX2591_SPEC
